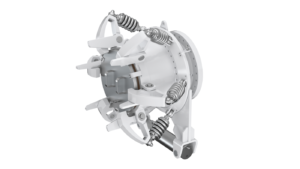

QUICK CONNECT & DISCONNECT COUPLER
The MIB hydraulic Quick Connect/Disconnect Coupler is a quick and easy method to connect and disconnect a rigid marine arm to and from the vessel manifold.
Available for ambient, low temperature, cryogenic and HPNG service conditions, MIB QCDC coupling is hydraulically operated and can be adaptable to various sizes of manifold flange.

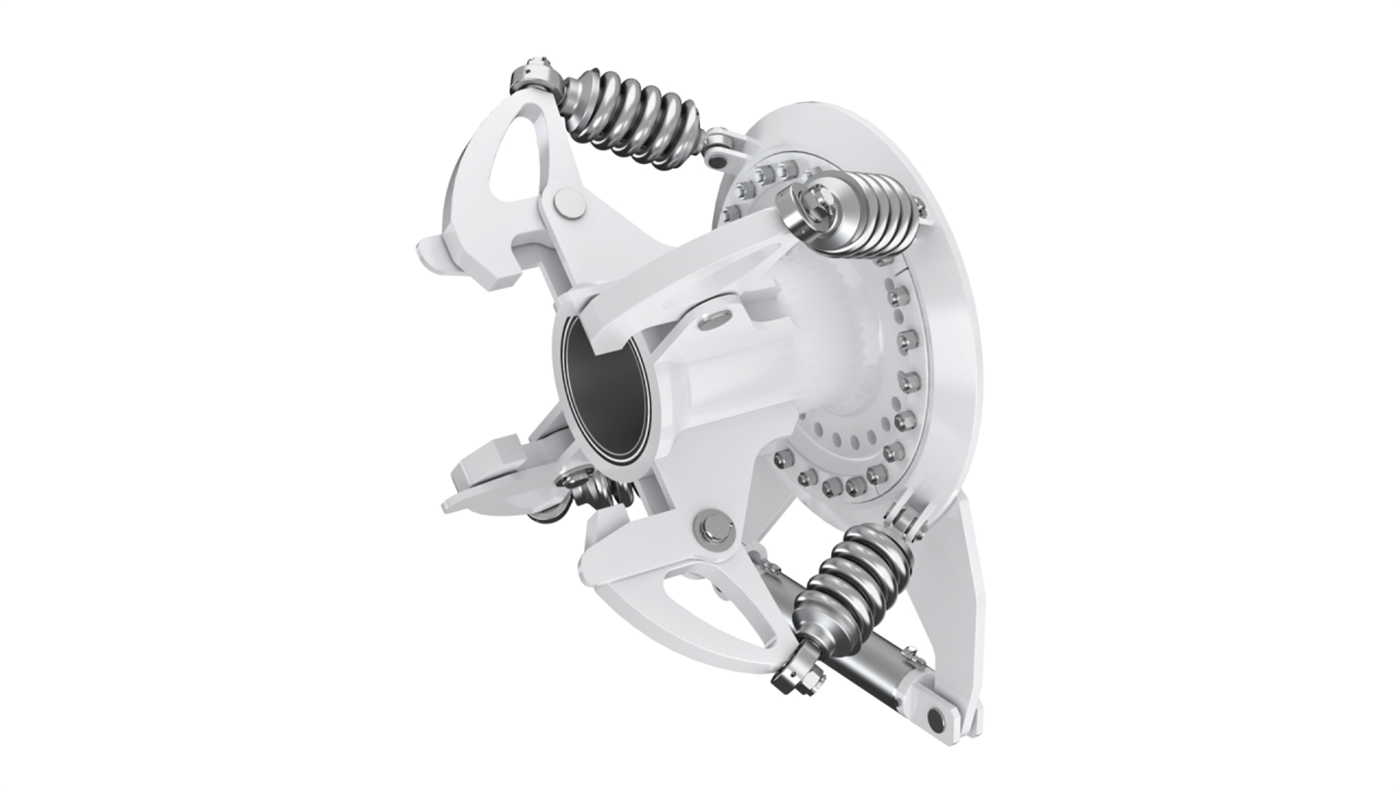

The QCDC consists of a main fluid carrying body which (at rear) has a flange for connection to the loading arm. At the front, the QCDC has a flange which houses the seals that ensure a leak-tight connection to the tanker manifold flange.

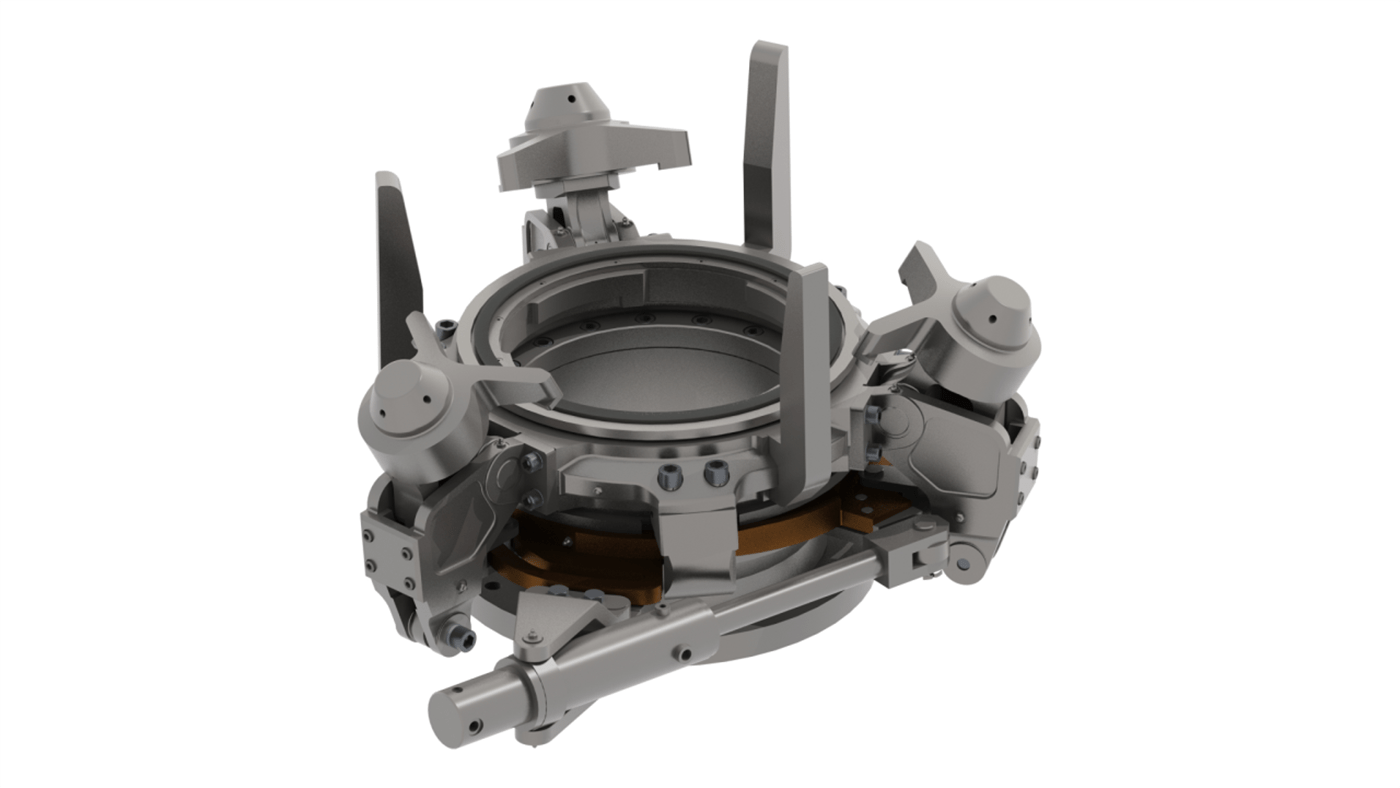

The QCDC clamps are radially mounted around the fluid carrying body and connected to a rotating collar which is mounted on the body.
ASME B16.5 Class 150, 300, 400 and Customized
Cryogenic, Low, Ambient, High
2″ to 24″
