MANUAL QUICK CONNECT / DISCONNECT COUPLER

Home  /  Solutions

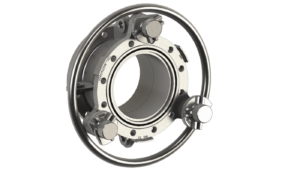

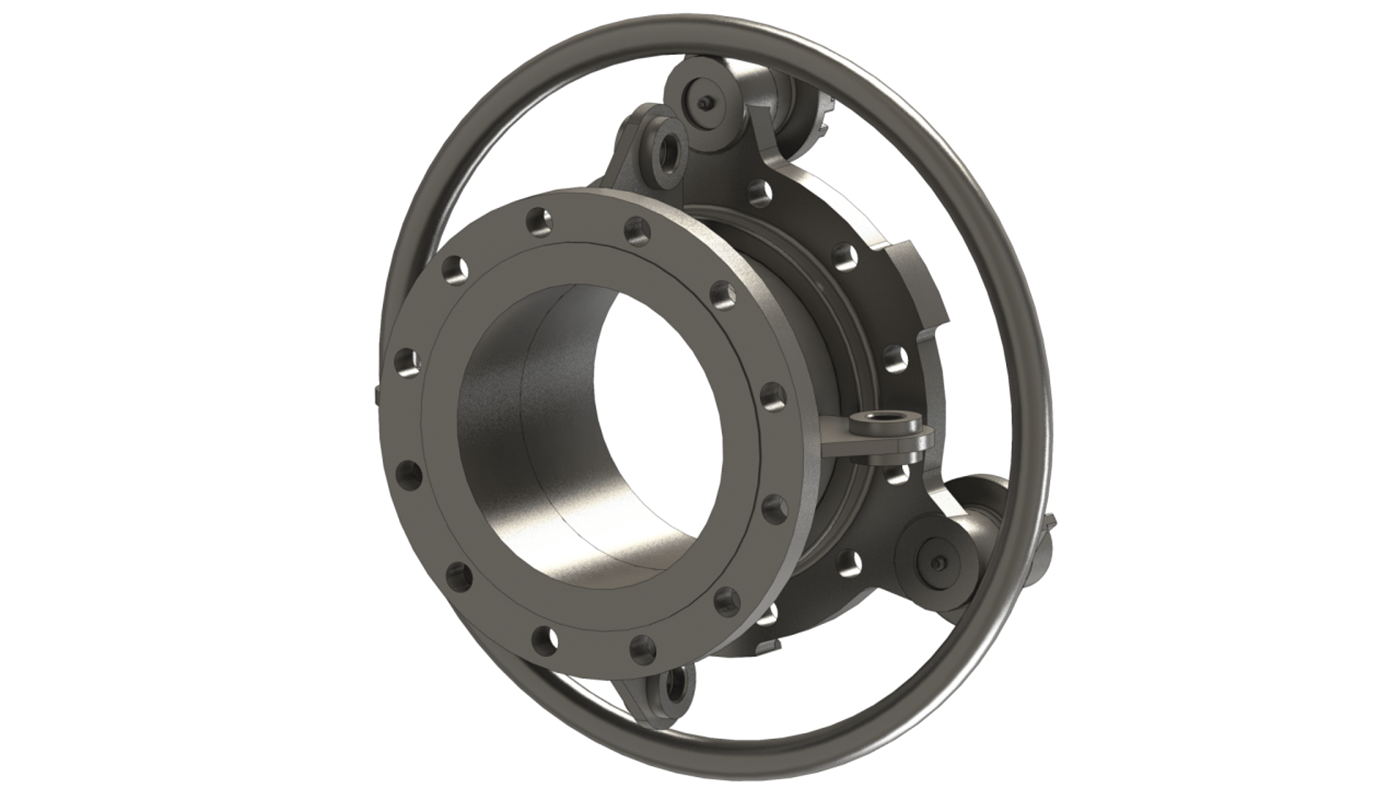

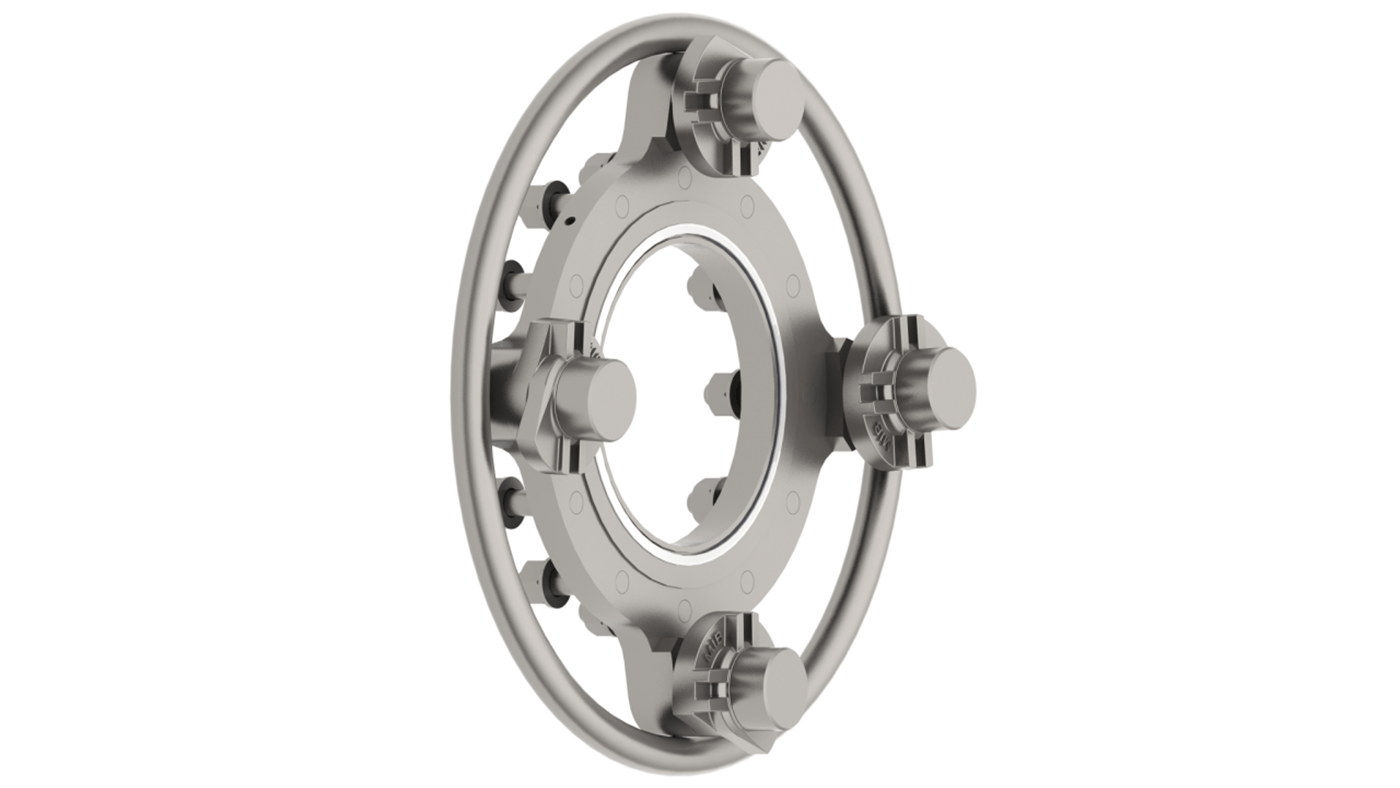

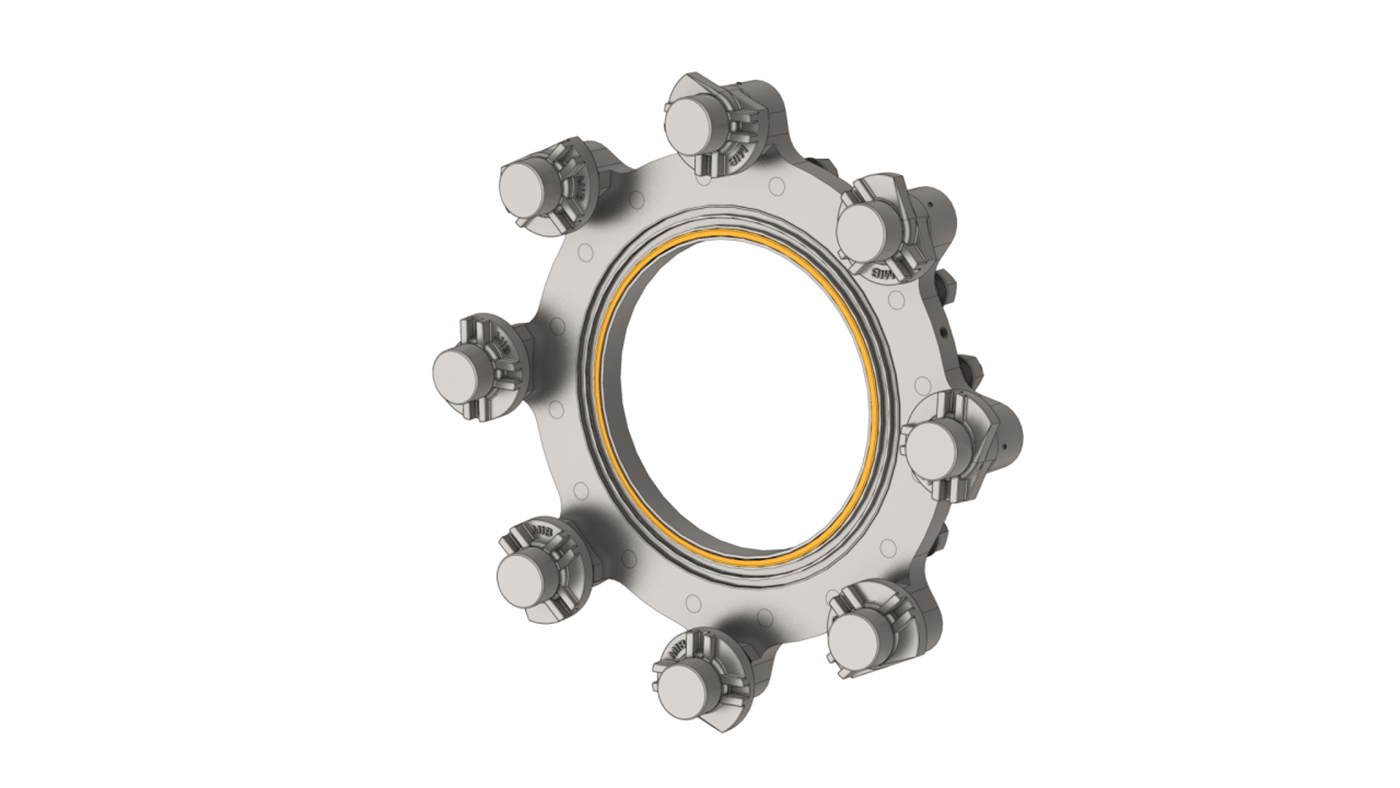

CAMLOCK - MIB ROTACAM

The MIB ROTACAM is a versatile manually operated quick connect & disconnect coupler to quickly and easy connect and disconnect a rigid marine arm or a flexible cargo hose to and from the manifold by on site personnel.

Thanks to the special wrench, locking cams will be turned to clamp and seal the the coupler’s body against the ship’s manifold flange avoiding the need to fit all the studs and bolts of a standard flange, so speeding the whole connection and disconnection procedure.

  • Design Pressure
    ASME B16.5 class 150, 300, DIN 2632 PN10, DIN 2633 PN16, DIN2634 PN25, DIN2635 PN40

  • Design Temperature
    -196/+85 °C

  • Size
    3″ to 20″

  • Handled Product
    LNG Liquid and Vapour, LPG, Crude Oil, Refined oils and Petrolchemicals
